Foam Lamination and Mounting Tapes

Low VOC Foam Lamination Tape #5782 and #5782 LSV

Ultra low VOC and Low Emission double-faced, non-woven tape with high adhesion that is suitable for use in vehicle cabins. It meets all guidelines for specific VOCs (volatile organic compounds) and has a very low TVOC. Applicable to a wide range of automotive interior substrates such as PP, PE, PU and EPDM materials.

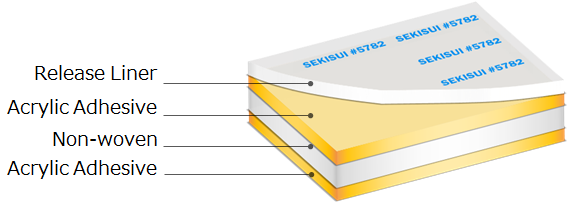

Low VOC Foam Lamination Tape #5782
Low VOC Foam Lamination Tape #5782

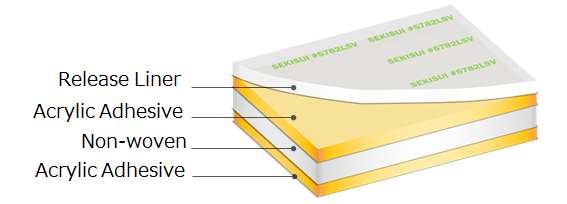

Low VOC Foam Lamination Tape #5782 LSV
Low VOC Foam Lamination Tape #5782 LSV

Features

  • Low Odour and ultra low VOC tape providing a better air quality for passengers inside the car
  • Excellent repulsion resistance on curved surfaces
  • High temperature resistance
  • Excellent adhesion to NVH, sealing and gaskets parts such as EPDM, PU and PE Foam
  • Excellent adhesion to low surface-energy parts such as PP plastics
  • Does not contain the 13 harmful VOCs

Applications

Foam Lamination seals, gaskets and insulation materials for:

  • HVAC
  • Airducts
  • Instrument Panel
  • Center Console
  • Door Panel
  • Audio System
  • B-Pillar
  • Cowl Top
  • Windscreen

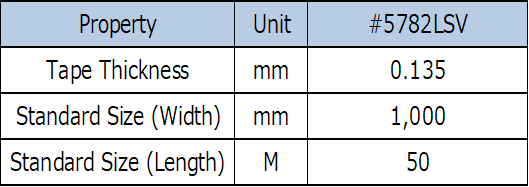

Standard Size

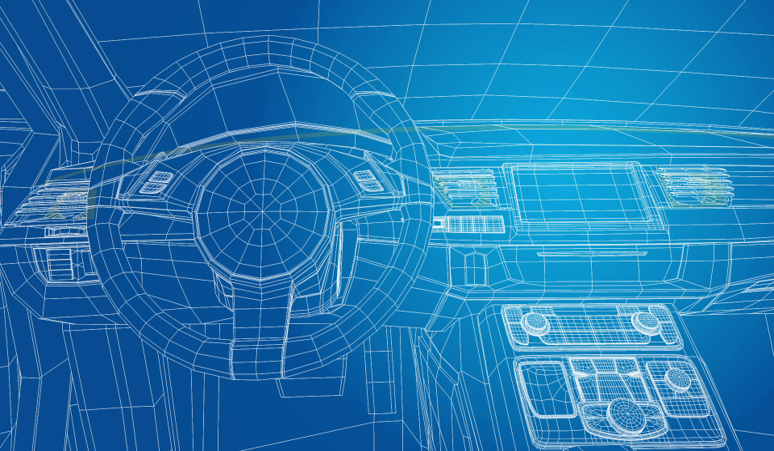

Application Example and Basic Properties

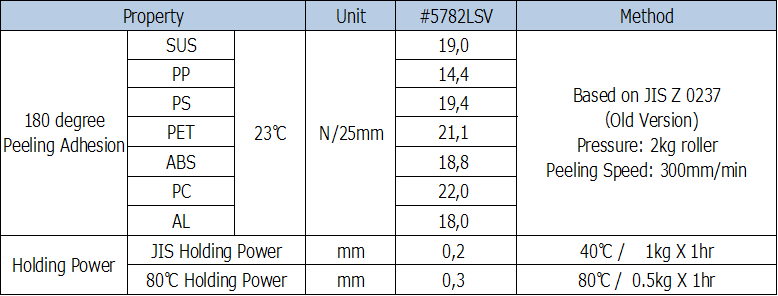

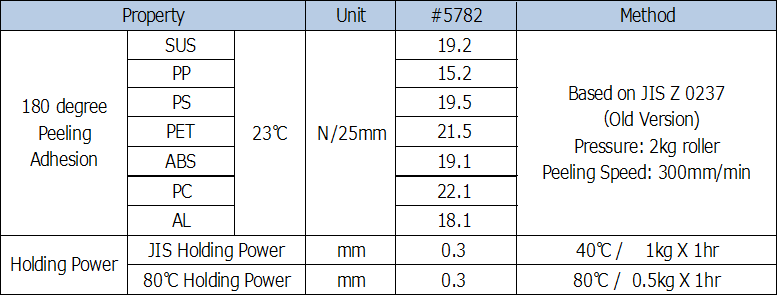

Properties

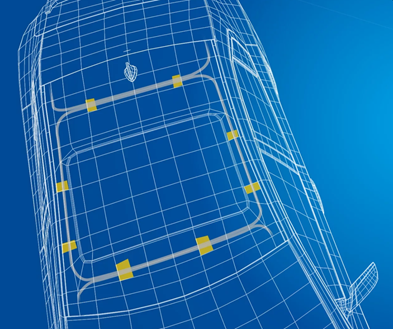

Wire Harness Tape #735A

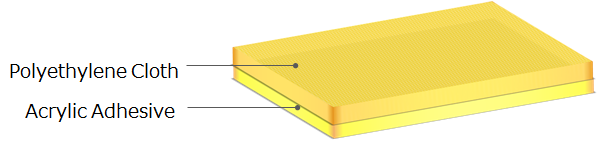

Single-faced adhesive tape composed of polyethylene cloth and a toluene-free acrylic adhesive for wire harness. Excellent workability; very easy to tear by hand. Strong adhesion to olefin materials such as PP and PE.

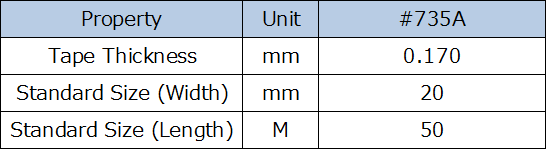

Standard Size

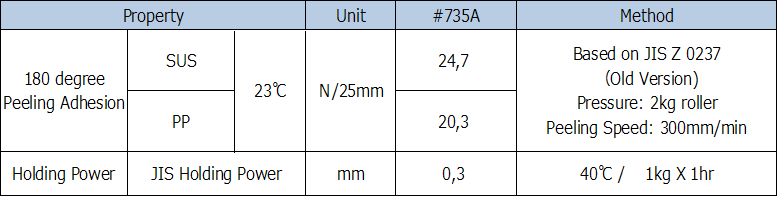

Properties

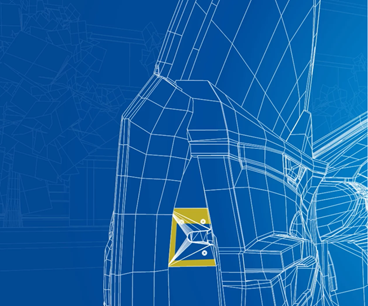

Oily Surface Tape #586

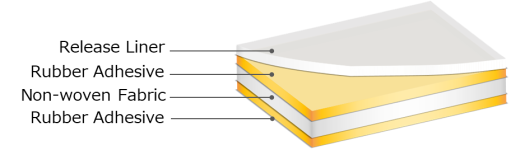

Double-faced adhesive tape made out of thin, non-woven fabric and coated with rubber adhesive. Excellent adhesion to oily surfaces such as door locks and seat frames. Provides a superior fit on curved surfaces and edges.

Standard Size

Properties

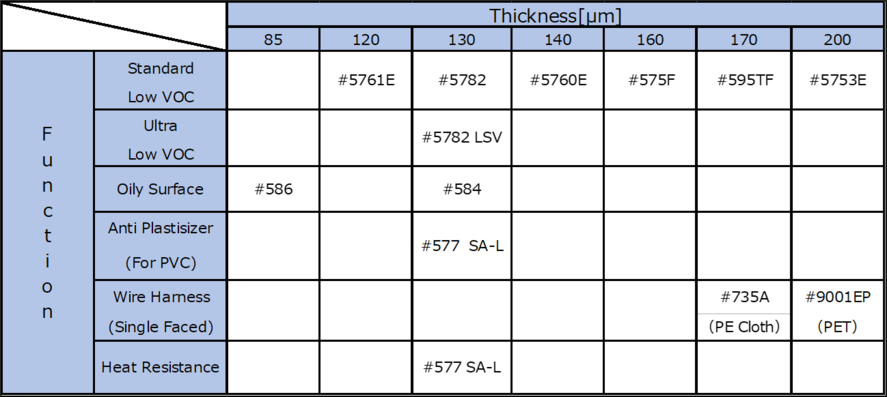

Product Line Up
